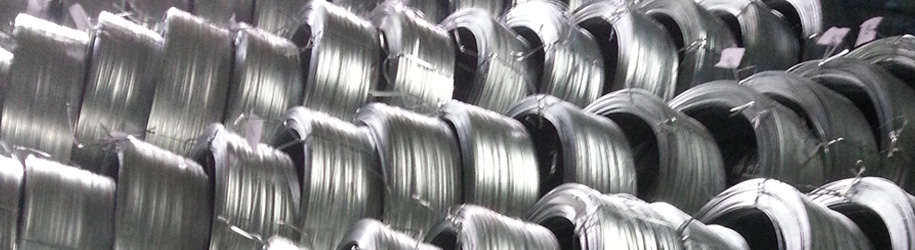

Cable Armouring Wires & Strips

A Cable Armouring Wires is a metal cover usually applied in form of wire or formed wire, intended to protect the cable from mechanical damage.

We manufacture Cable Armouring Wires including Round / Formed wires for cable industries, as per Indian / International specifications e.g. IS-3975 / 1999 and BS – 1442.

Hot Dipped Galvanized Strips Round and Formed Wires (with round and flat cross section) are manufactured in modern galvanized furnace with latest technology to ensure superior quality. The formed and round wires have superior corrosion resistance, tensile strength and flexibility.

Cable Armouring Formed Wires

Size mm> 4.00 X 0.80 6.1 X 1.40
Cross Section > Width> A 4.00 6.10
  B 3.40 5.30
  Thicknes> C 0.80 1.40
  Radius> R 10.00 27.5
Tolerance mm (+/-)> 10% 10%
ZINC Coating Gm/Sq. Mt.> 110 180
Tensile Strength Mpa> 300-500 300-500
Elongation % (min.)> 10 10
Resisitivity Ohm-Cm X 10 -6max> 14.5 14.5



Cable Armouring Round Wires

Size mm 0.70 0.70 0.90 1.25 1.40 1.60 2.00 2.50 3.15 4.00
Tolerance mm (+/-) 0.02 0.025 0.03 0.035 0.04 0.045 0.05 0.065 0.08 0.10
ZINC Coating Gm/Sq. Mt. 45 60 75 90 90 95 105 110 120 135
Tensile Strength Mpa 300 - 500 300 – 500 300 - 500 300 - 500 300 - 500 300 - 500 300 - 500 300 - 500 300 - 500 300 - 500
Elongation % (MIN.) 10 10 10 10 10 10 10 10 10 10
Resisitivity Ohm-Cm X 10 -6max 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5

** These are regular sizes that we manufacture. Besides them, we can custom made different sizes and finishes as per the customers’ requirement.
